Rating:50mA 24VDC
Contact Resistance:50mΩ Max.(initial)
Insulation Resistance:100mΩMin
Operating Force:r 170±50gf
Total Travel:2.0±0.4mm
Operatong Life:50,000 Cycles Min
Solder specifications:260ofor5 seconds
Operating Temerature:-20℃~+70℃
???????
介紹：

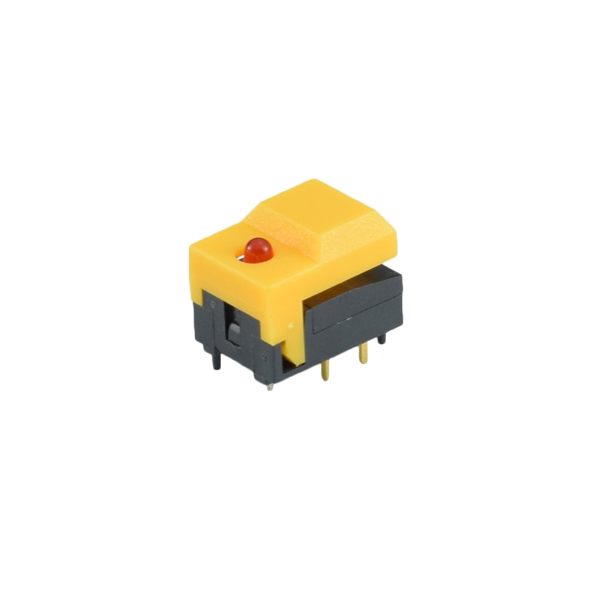

控臺按鍵PB86系列，蓋帽尺寸有小蓋12*17mm和17*17mm兩種，適用于舞臺燈光設(shè)備，如老虎控臺，珍珠控臺，512控臺等，手感極佳，高壽命，任意定制絲印。
???????
